Trasformatori di impulsi
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | TransformerType | Inductance | ET(Volt-Time) | TurnsRatio-Primary:Secondary | MountingType | Size/Dimension | Height-Seated(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PH9572.233NLTGDT, FUNCTIONAL, EP7, SMT Pulse Electronics Power |
11,678 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Gate Drive | 1.8mH | 56.5VµS | - | Surface Mount | 0.402 L x 0.295 W (10.20mm x 7.50mm) | 0.433 (11.00mm) |
|
PM2180.012NLTXFMR GATE-DR 1CT:2CT SM NPB Pulse Electronics Power |
1,400 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | PM2180.XXXNL | Active | Isolation and Data Interface (Encapsulated) | 1.02mH | 22VµS | 1CT:2CT | Surface Mount | 0.319 L x 0.280 W (8.10mm x 7.10mm) | 0.200 (5.08mm) |
|
|
PH9572.122ANLTGDT, FUNCTIONAL, EP7, SMT Pulse Electronics Power |
11,676 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Gate Drive | 1mH | 42.4VµS | - | Surface Mount | 0.402 L x 0.295 W (10.20mm x 7.50mm) | 0.433 (11.00mm) |
|
|
PH9572.322ANLTGDT, FUNCTIONAL, EP7, SMT Pulse Electronics Power |
11,100 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Gate Drive | - | - | - | Surface Mount | - | - |
|
|
PH9572.233ANLTGDT, FUNCTIONAL, EP7, SMT Pulse Electronics Power |
10,750 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Gate Drive | 1.8mH | 56.5VµS | - | Surface Mount | 0.402 L x 0.295 W (10.20mm x 7.50mm) | 0.433 (11.00mm) |
|

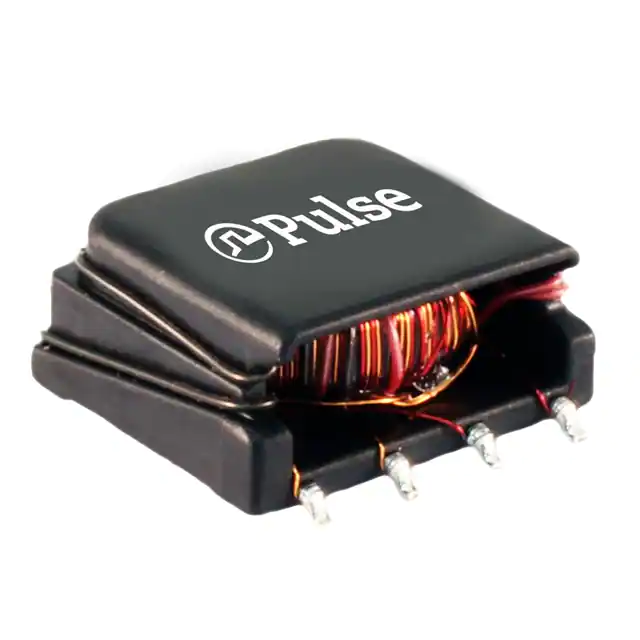

PM2155.011NLTXFMR PUSH-PULL SIDE CAR S NPB Pulse Electronics Power |
894 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PM2155.XXXNLT | Active | Isolation and Data Interface (Encapsulated) | 3.2mH | 109VµS | 1CT:1CT | Surface Mount | 0.630 L x 0.591 W (16.00mm x 15.00mm) | 0.295 (7.50mm) |
|
PA1130NLTXFRMR 3.3V 3W 500UH POE EP7 SMD Pulse Electronics Power |
1,042 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | EP7 | Active | Isolation and Data Interface (Encapsulated) | 500µH | - | 1:0.083:0.208 | Surface Mount | 0.420 L x 0.525 W (10.67mm x 13.34mm) | 0.365 (9.27mm) |
|
PM2190.034NLTXFMR PWR .750 UH EP7 SM NPB Pulse Electronics Power |
808 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PM2190.XXXNL | Active | Isolation and Data Interface (Encapsulated) | 750µH | 66VµS | 3CT:4CT | Surface Mount | 0.394 L x 0.394 W (10.00mm x 10.00mm) | 0.492 (12.50mm) |
|
|
PM2190.011NLTXFMR PWR .750 UH EP7 SM NPB Pulse Electronics Power |
621 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PM2190.XXXNL | Active | Isolation and Data Interface (Encapsulated) | 750µH | 66VµS | 1CT:1CT | Surface Mount | 0.394 L x 0.394 W (10.00mm x 10.00mm) | 0.492 (12.50mm) |
|

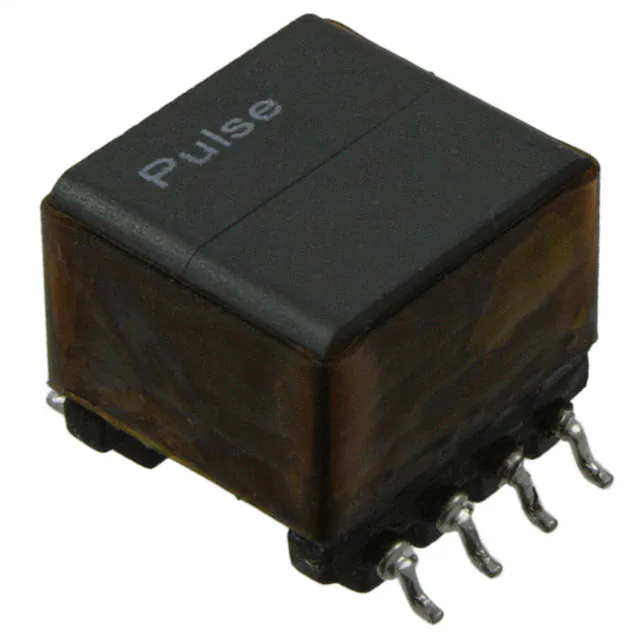

PA1277NLTXFRMR 3.3V 10W 20.4UH POE EP10 Pulse Electronics Power |
27,040 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | EP10 | Active | Isolation and Data Interface (Encapsulated) | 20.4µH | - | 1:0.222:0.555 | Surface Mount | 0.515 L x 0.600 W (13.08mm x 15.24mm) | 0.451 (11.45mm) |
|
PA1282NLTXFRMR 3.3V 7W 155UH POE EP10 SMD Pulse Electronics Power |
1,816 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | EP10 | Active | Isolation and Data Interface (Encapsulated) | 155µH | - | 1:0.182:0.682 | Surface Mount | 0.515 L x 0.600 W (13.08mm x 15.24mm) | 0.451 (11.45mm) |
|
PA1528NLTXFRMR 15V 27W 28.9UH POE EP13 Pulse Electronics Power |
1,058 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | EP13 | Active | Isolation and Data Interface (Encapsulated) | 28.9µH | - | 1:0.470:0.294 | Surface Mount | 0.551 L x 0.516 W (14.00mm x 13.11mm) | 0.485 (12.32mm) |
|
PH9185.038NLTTRANSFORMER 310UH 3:8 SMD Pulse Electronics Power |
720 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PH9185 | Active | - | - | - | - | Surface Mount | 0.394 L x 0.394 W (10.00mm x 10.00mm) | 0.492 (12.50mm) |
|
PA2466NLPULSE XFMR 37UH Pulse Electronics Power |
148 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | - | 37µH | - | - | Surface Mount | 0.551 L x 0.516 W (14.00mm x 13.11mm) | 0.485 (12.32mm) |
|
PA1277NLXFMR FLYBACK EP10 SMT Pulse Electronics Power |
716 | - |
RFQ |
Scheda tecnica |
Tray | PA1277NL | Active | Isolation and Data Interface (Encapsulated) | 20.4µH | - | - | Surface Mount | 0.600 L x 0.515 W (15.24mm x 13.08mm) | 0.451 (11.45mm) |
|
PA1735NLPULSE XFMR 28.5UH Pulse Electronics Power |
351 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | - | 28.5µH | - | - | Surface Mount | 0.860 L x 1.150 W (21.84mm x 29.21mm) | 0.450 (11.43mm) |
|
|
PA1528ANLTPULSE XFMR 28.9UH Pulse Electronics Power |
6,000 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | - | Active | - | 28.9µH | - | - | Surface Mount | 0.551 L x 0.516 W (14.00mm x 13.11mm) | 0.485 (12.32mm) |
|
PH9385.027NLTXFMR PUSH-PULL SIDE CAR 2:7 SMT Pulse Electronics Power |
197 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PH9385 | Active | - | - | - | - | Surface Mount | - | 0.295 (7.50mm) |
|
|
PH9385.011NLTXFMR PUSH-PULL SIDE CAR S NPB Pulse Electronics Power |
1,034 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | - | - | - | - | - | 0.630 L x 0.591 W (16.00mm x 15.00mm) | 0.305 (7.75mm) |
|
|
PM2155.034NLTXFMR PUSH-PULL SIDE CAR S NPB Pulse Electronics Power |
261 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PM2155.XXXNLT | Active | Isolation and Data Interface (Encapsulated) | 2.6mH | 98VµS | 3CT:4CT | Surface Mount | 0.630 L x 0.591 W (16.00mm x 15.00mm) | 0.295 (7.50mm) |
