Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	MountingType	CoilVoltage	ContactForm	ContactRating(Current)	SwitchingVoltage	CoilCurrent	CoilType	Features	TerminationStyle	SealRating	MustOperateVoltage	MustReleaseVoltage	OperateTime	ReleaseTime	OperatingTemperature
DIP12-1C90-51L RELAY REED SPDT 500MA 12V Standex-Meder Electronics	3,192	-	RFQ	Scheda tecnica	Tube	DIP	Active	Through Hole	12VDC	SPDT (1 Form C)	500 mA	175VAC, 175VDC - Max	24 mA	Non Latching	-	PC Pin	-	8.4 VDC	1.8 VDC	0.7 ms	1.5 ms	-20°C ~ 70°C
DIP24-1C90-51L RELAY REED SPDT 500MA 24V Standex-Meder Electronics	2,536	-	RFQ	Scheda tecnica	Tube	DIP	Active	Through Hole	24VDC	SPDT (1 Form C)	500 mA	175VAC, 175VDC - Max	12 mA	Non Latching	-	PC Pin	-	16.8 VDC	3.6 VDC	0.7 ms	1.5 ms	-20°C ~ 70°C
DIP05-1C90-51D RELAY REED SPDT 250MA 5V Standex-Meder Electronics	3,529	-	RFQ	Scheda tecnica	Tube	DIP	Active	Through Hole	5VDC	SPDT (1 Form C)	250 mA	175VAC, 175VDC - Max	25 mA	Non Latching	Diode	PC Pin	-	3.5 VDC	0.75 VDC	0.7 ms	1.5 ms	-20°C ~ 70°C
NP05-1C90-500-250 RELAY REED SPDT 250MA 5V Standex-Meder Electronics	2,140	-	RFQ	Scheda tecnica	Tube	NP	Active	Through Hole	5VDC	SPDT (1 Form C)	250 mA	175VAC, 175VDC - Max	10 mA	Non Latching	EMI Shielded	PC Pin	-	3.5 VDC	0.75 VDC	0.7 ms	1.5 ms	-20°C ~ 70°C
CRR05-1A RELAY REED SPST 500MA 5V Standex-Meder Electronics	3,149	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	CRR	Active	Surface Mount	5VDC	SPST-NO (1 Form A)	500 mA	170VAC, 170VDC - Max	33.3 mA	Non Latching	-	SMD (SMT) Tab	-	3.75 VDC	0.75 VDC	0.6 ms	0.05 ms	-40°C ~ 125°C
KT05-1A-40L-SMD REED RELAY 1 FORM A 5V SMD Standex-Meder Electronics	3,436	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	KT	Active	Surface Mount	5VDC	SPST-NO (1 Form A)	1 A	1000VAC, 1000VDC - Max	63 mA	Non Latching	-	Gull Wing	Sealed - Fully	3.5 VDC	0.5 VDC	-	-	-40°C ~ 100°C
SHV05-1A85-78L3K RELAY REED SPST 1A 5V Standex-Meder Electronics	3,362	-	RFQ	Scheda tecnica	Tube	SHV	Active	Through Hole	5VDC	SPST-NO (1 Form A)	1 A	1000VAC, 1000VDC - Max	27.8 mA	Non Latching	-	PC Pin	-	3.75 VDC	0.5 VDC	1.1 ms	0.1 ms	-40°C ~ 100°C
SHV05-1A85-78D3K RELAY REED SPST 1A 5V Standex-Meder Electronics	3,808	-	RFQ	Scheda tecnica	Tube	SHV	Active	Through Hole	5VDC	SPST-NO (1 Form A)	1 A	1000VAC, 1000VDC - Max	27.8 mA	Non Latching	Diode	PC Pin	-	3.75 VDC	0.5 VDC	1.1 ms	0.1 ms	-40°C ~ 100°C
SHV12-1A85-78D3K RELAY REED SPST 1A 12V Standex-Meder Electronics	2,956	-	RFQ	Scheda tecnica	Tube	SHV	Active	Through Hole	12VDC	SPST-NO (1 Form A)	1 A	1000VAC, 1000VDC - Max	24 mA	Non Latching	Diode	PC Pin	-	8.4 VDC	1.8 VDC	1.1 ms	0.1 ms	-40°C ~ 100°C
SHV12-1A85-78L3K RELAY REED SPST 1A 12V Standex-Meder Electronics	3,357	-	RFQ	Scheda tecnica	Tube	SHV	Active	Through Hole	12VDC	SPST-NO (1 Form A)	1 A	1000VAC, 1000VDC - Max	24 mA	Non Latching	-	PC Pin	-	8.4 VDC	1.8 VDC	1.1 ms	0.1 ms	-40°C ~ 100°C
SHV12-1A85-78D4K RELAY REED SPST 1A 12V Standex-Meder Electronics	3,796	-	RFQ	Scheda tecnica	Tube	SHV	Active	Through Hole	12VDC	SPST-NO (1 Form A)	1 A	1000VAC, 1000VDC - Max	24 mA	Non Latching	Diode	PC Pin	-	8.4 VDC	1.8 VDC	1.1 ms	0.1 ms	-40°C ~ 100°C
MS05-1A71-75LHR RELAY REED SPST 500MA 5V Standex-Meder Electronics	2,978	-	RFQ	Scheda tecnica	Tube	MS	Obsolete	Through Hole	5VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	10 mA	Non Latching	-	PC Pin	-	3.5 VDC	0.75 VDC	0.5 ms	0.1 ms	-20°C ~ 65°C
SIL05-1A31-71M RELAY REED SPST 2A 5V Standex-Meder Electronics	2,005	-	RFQ	Scheda tecnica	Tube	SIL	Active	Through Hole	5VDC	SPST-NO (1 Form A)	2 A	500VAC, 500VDC - Max	62 mA	Non Latching	-	PC Pin	-	3.5 VDC	0.75 VDC	1.2 ms	1 ms	-20°C ~ 70°C
MS05-1A31-75L RELAY REED SPST 2A 5V Standex-Meder Electronics	2,977	-	RFQ	Scheda tecnica	Tube	MS	Obsolete	Through Hole	5VDC	SPST-NO (1 Form A)	2 A	1000VAC, 1000VDC - Max	50 mA	Non Latching	-	PC Pin	-	3.5 VDC	0.75 VDC	1 ms	0.7 ms	-20°C ~ 70°C
LI05-1A85 RELAY REED SPST 1A 5V Standex-Meder Electronics	2,184	-	RFQ	Scheda tecnica	Tube	LI	Active	Through Hole	5VDC	SPST-NO (1 Form A)	1 A	1000VAC, 1000VDC - Max	25 mA	Non Latching	-	PC Pin	Sealed - Fully	3.5 VDC	0.75 VDC	1.1 ms	0.1 ms	-20°C ~ 70°C
LI12-1A85 RELAY REED SPST 1A 12V Standex-Meder Electronics	2,181	-	RFQ	Scheda tecnica	Tube	LI	Active	Through Hole	12VDC	SPST-NO (1 Form A)	1 A	1000VAC, 1000VDC - Max	17.5 mA	Non Latching	-	PC Pin	-	8.4 VDC	1.8 VDC	1 ms	0.1 ms	-20°C ~ 70°C
BE05-2A85-P RELAY REED DPST 1A 5V Standex-Meder Electronics	3,828	-	RFQ	Scheda tecnica	Bulk	BE	Active	Through Hole	5VDC	DPST-NO (2 Form A)	1 A	1000VAC, 1000VDC - Max	71.4 mA	Non Latching	-	PC Pin	Sealed - Fully	3.5 VDC	0.75 VDC	1 ms	0.1 ms	-20°C ~ 70°C
MS05-1A87-75DHR RELAY REED SPST 500MA 5V Standex-Meder Electronics	3,658	-	RFQ	Scheda tecnica	Tube	MS	Active	Through Hole	5VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	10 mA	Non Latching	Diode	PC Pin	-	3.75 VDC	0.75 VDC	0.5 ms	0.1 ms	-20°C ~ 70°C
SHV05-1A85-78L2K RELAY REED SPST 1A 5V Standex-Meder Electronics	2,060	-	RFQ	Scheda tecnica	Tube	SHV	Active	Through Hole	5VDC	SPST-NO (1 Form A)	1 A	1000VAC, 1000VDC - Max	22 mA	Non Latching	-	PC Pin	-	3.75 VDC	0.5 VDC	1.1 ms	0.1 ms	-40°C ~ 105°C

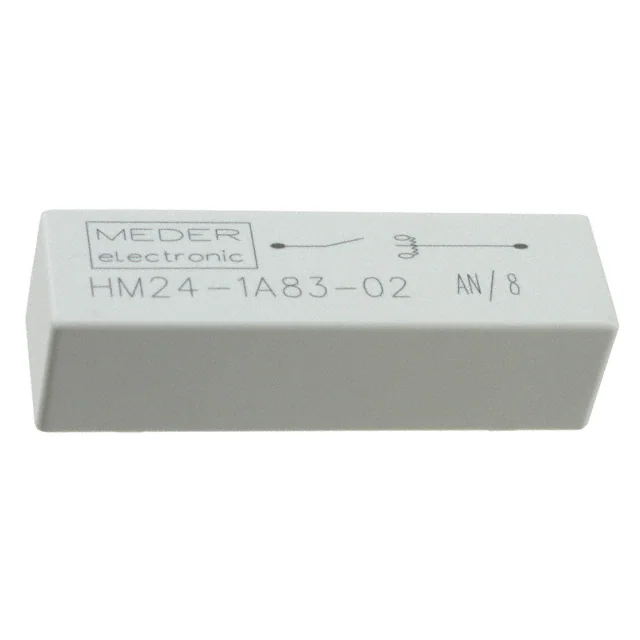

HM24-1A83-02 RELAY REED SPST 3A 24V Standex-Meder Electronics	3,339	-	RFQ	Scheda tecnica	Bulk	HM	Active	Through Hole	24VDC	SPST-NO (1 Form A)	3 A	7500VAC, 7500VDC - Max	24 mA	Non Latching	-	PC Pin	-	18 VDC	2 VDC	3 ms	1.5 ms	-20°C ~ 70°C
