Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	MountingType	CoilVoltage	ContactForm	ContactRating(Current)	SwitchingVoltage	CoilCurrent	CoilType	Features	TerminationStyle	SealRating	MustOperateVoltage	MustReleaseVoltage	OperateTime	ReleaseTime	OperatingTemperature
DIP05-1A72-12D RELAY REED SPST 1A 5V Standex-Meder Electronics	3,371	-	RFQ	Scheda tecnica	Tube	DIP	Active	Through Hole	5VDC	SPST-NO (1 Form A)	1 A	200VAC, 200VDC - Max	10 mA	Non Latching	Diode	PC Pin	-	3.5 VDC	0.75 VDC	0.5 ms	0.1 ms	-20°C ~ 70°C
DIP24-1A72-12D RELAY REED SPST 1A 24V Standex-Meder Electronics	2,028	-	RFQ	Scheda tecnica	Tube	DIP	Active	Through Hole	24VDC	SPST-NO (1 Form A)	1 A	200VAC, 200VDC - Max	12 mA	Non Latching	Diode	PC Pin	-	16.8 VDC	3.6 VDC	0.5 ms	0.1 ms	-20°C ~ 70°C
MS12-1A87-75L RELAY REED SPST 500MA 12V Standex-Meder Electronics	3,799	-	RFQ	Scheda tecnica	Tube	MS	Active	Through Hole	12VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	17.1 mA	Non Latching	-	PC Pin	-	8.4 VDC	1.8 VDC	0.5 ms	0.1 ms	-20°C ~ 70°C
MS05-1A87-75L RELAY REED SPST 500MA 5V Standex-Meder Electronics	2,601	-	RFQ	Scheda tecnica	Tube	MS	Active	Through Hole	5VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	18 mA	Non Latching	-	PC Pin	-	3.75 VDC	0.75 VDC	0.5 ms	0.1 ms	-20°C ~ 70°C
NP05-1A66-500-210 RELAY REED SPST 500MA 5V Standex-Meder Electronics	2,230	-	RFQ	Scheda tecnica	Tube	NP	Active	Through Hole	5VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	10 mA	Non Latching	EMI Shielded	PC Pin	-	3.5 VDC	0.75 VDC	0.5 ms	0.1 ms	-20°C ~ 70°C
DIP12-2A72-21L RELAY REED DPST 1A 12V Standex-Meder Electronics	2,965	-	RFQ	Scheda tecnica	Tube	DIP	Active	Through Hole	12VDC	DPST-NO (2 Form A)	1 A	200VAC, 200VDC - Max	24 mA	Non Latching	-	PC Pin	-	8.4 VDC	1.8 VDC	0.5 ms	0.1 ms	-20°C ~ 70°C
MS12-1A87-75D RELAY REED SPST 500MA 12V Standex-Meder Electronics	3,769	-	RFQ	Scheda tecnica	Tube	MS	Active	Through Hole	12VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	17.1 mA	Non Latching	-	PC Pin	-	8.4 VDC	1.8 VDC	0.5 ms	0.1 ms	-20°C ~ 70°C
DIP24-2A72-21L RELAY REED DPST 1A 24V Standex-Meder Electronics	3,645	-	RFQ	Scheda tecnica	Tube	DIP	Active	Through Hole	24VDC	DPST-NO (2 Form A)	1 A	200VAC, 200VDC - Max	12 mA	Non Latching	-	PC Pin	-	16.8 VDC	3.6 VDC	0.5 ms	0.1 ms	-20°C ~ 70°C
DIP24-1C90-51D RELAY REED SPDT 500MA 24V Standex-Meder Electronics	2,858	-	RFQ	Scheda tecnica	Tube	DIP	Active	Through Hole	24VDC	SPDT (1 Form C)	500 mA	175VAC, 175VDC - Max	12 mA	Non Latching	Diode	PC Pin	-	16.8 VDC	3.6 VDC	0.7 ms	1.5 ms	-20°C ~ 70°C
NP05-2A66-500-220 RELAY REED DPST 500MA 5V Standex-Meder Electronics	3,095	-	RFQ	Scheda tecnica	Tube	NP	Active	Through Hole	5VDC	DPST-NO (2 Form A)	500 mA	200VAC, 200VDC - Max	10 mA	Non Latching	EMI Shielded	PC Pin	-	3.5 VDC	0.75 VDC	0.5 ms	0.1 ms	-20°C ~ 70°C
SIL05-1A72-74L RELAY REED SPST 0.5A 5V Standex-Meder Electronics	2,865	-	RFQ	Scheda tecnica	Tube	SIL	Active	Through Hole	5VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	10 mA	Non Latching	-	PC Pin	-	3.5 VDC	0.75 VDC	0.7 ms	0.1 ms	-20°C ~ 70°C
BE12-1A85-P RELAY REED SPST 1A 12V Standex-Meder Electronics	2,791	-	RFQ	Scheda tecnica	Tube	BE	Active	Through Hole	12VDC	SPST-NO (1 Form A)	1 A	1000VAC, 1000VDC - Max	19.3 mA	Non Latching	-	PC Pin	Sealed - Fully	8.4 VDC	1.8 VDC	1 ms	0.1 ms	-20°C ~ 70°C
BE24-1A85-P RELAY REED SPST 1A 24V Standex-Meder Electronics	3,751	-	RFQ	Scheda tecnica	Tube	BE	Active	Through Hole	24VDC	SPST-NO (1 Form A)	1 A	1000VAC, 1000VDC - Max	17.1 mA	Non Latching	-	PC Pin	Sealed - Fully	16.8 VDC	3.6 VDC	1 ms	0.1 ms	-20°C ~ 70°C
MS05-2A87-78D RELAY REED DPST 500MA 5V Standex-Meder Electronics	2,941	-	RFQ	Scheda tecnica	Tube	MS	Active	Through Hole	5VDC	DPST-NO (2 Form A)	500 mA	200VAC, 200VDC - Max	13.4 mA	Non Latching	Diode	PC Pin	-	3.75 VDC	0.5 VDC	0.5 ms	0.35 ms	-20°C ~ 70°C
MS05-2A87-78L RELAY REED DPST 500MA 5V Standex-Meder Electronics	2,118	-	RFQ	Scheda tecnica	Tube	MS	Active	Through Hole	5VDC	DPST-NO (2 Form A)	500 mA	200VAC, 200VDC - Max	13.4 mA	Non Latching	-	PC Pin	-	3.75 VDC	0.5 VDC	0.5 ms	0.1 ms	-20°C ~ 70°C
BE05-1A85-P RELAY REED SPST 1A 5V Standex-Meder Electronics	3,764	-	RFQ	Scheda tecnica	Tube	BE	Active	Through Hole	5VDC	SPST-NO (1 Form A)	1 A	1000VAC, 1000VDC - Max	47.6 mA	Non Latching	-	PC Pin	Sealed - Fully	3.5 VDC	0.75 VDC	1 ms	0.1 ms	-20°C ~ 70°C
HE12-1A83-02 RELAY REED SPST 3A 12V Standex-Meder Electronics	3,652	-	RFQ	Scheda tecnica	Bulk	HE	Active	Through Hole	12VDC	SPST-NO (1 Form A)	3 A	7500VAC, 7500VDC - Max	46.2 mA	Non Latching	-	PC Pin	-	9 VDC	2 VDC	3 ms	1.5 ms	-20°C ~ 70°C
HE12-1A83-03 RELAY REED SPST 3A 12V Standex-Meder Electronics	3,140	-	RFQ	Scheda tecnica	Tube	HE	Active	Through Hole	12VDC	SPST-NO (1 Form A)	3 A	7500VAC, 7500VDC - Max	46.2 mA	Non Latching	-	PC Pin	-	9 VDC	1 VDC	3 ms	1.5 ms	-20°C ~ 70°C
HE12-1B83 RELAY REED SPST 3A 12V Standex-Meder Electronics	2,820	-	RFQ	Scheda tecnica	Bulk	HE	Active	Through Hole	12VDC	SPST-NC (1 Form B)	3 A	7500VAC, 7500VDC - Max	30 mA	Non Latching	-	PC Pin	-	9 VDC	1 VDC	3 ms	1.5 ms	-20°C ~ 70°C

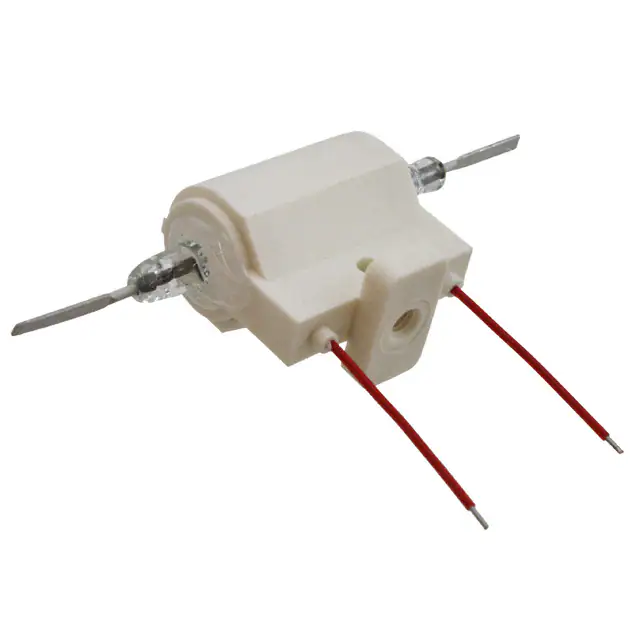

H24-1A83 RELAY REED SPST 3A 24V Standex-Meder Electronics	2,872	-	RFQ	Scheda tecnica	Bulk	H	Active	Chassis Mount	24VDC	SPST-NO (1 Form A)	3 A	7500VAC, 7500VDC - Max	34.3 mA	Non Latching	-	Wire Leads	-	18 VDC	2 VDC	3.2 ms	1.5 ms	-20°C ~ 70°C

Total 117 Record«Prev 1 2 345 6 Next»
