Relè Reed
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

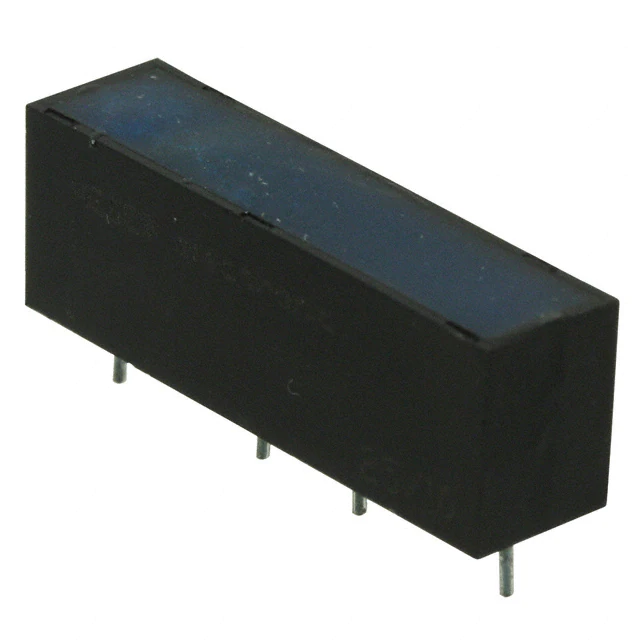

SIL05-1A72-71DRELAY REED SPST 0.5A 5V Standex-Meder Electronics |
600 | - |
RFQ |
Scheda tecnica |
Tube | SIL | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.7 ms | 0.1 ms | -20°C ~ 70°C |
|
HE722A1210RELAY REED DPST 500MA 12V Littelfuse Inc. |
2,396 | - |
RFQ |
Scheda tecnica |
Tube | HE700 | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 8 VDC | 1 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|
|
SIL03-1A72-71DRELAY REED SPST 0.5A 3V Standex-Meder Electronics |
2,760 | - |
RFQ |
Scheda tecnica |
Tube | SIL | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 6 mA | Non Latching | Diode | PC Pin | - | 2.1 VDC | 0.45 VDC | 0.7 ms | 0.05 ms | -20°C ~ 70°C |
|
|
HE721C0500RELAY REED SPDT 250MA 5V Littelfuse Inc. |
2,614 | - |
RFQ |
Scheda tecnica |
Tube | HE700 | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 3 ms | 3 ms | -40°C ~ 85°C |
|
8L02-05-00RELAY REED DPST 500MA 5V Coto Technology |
2,789 | - |
RFQ |
Scheda tecnica |
Tube | 8L | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|

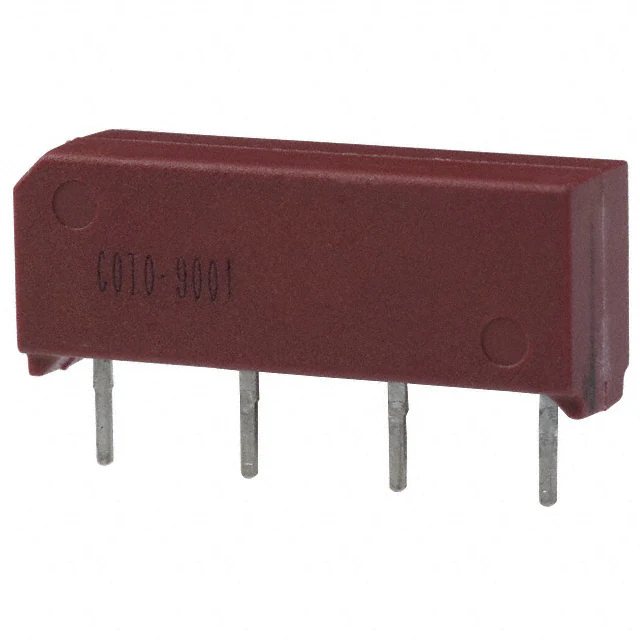

9001-12-00RELAY REED SPST 500MA 12V Coto Technology |
2,105 | - |
RFQ |
Scheda tecnica |
Tube | 9000 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C |
|
|
HE721C2400RELAY REED SPDT 250MA 24V Littelfuse Inc. |
2,157 | - |
RFQ |
Scheda tecnica |
Tube | HE700 | Active | Through Hole | 24VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16 VDC | 2 VDC | 3 ms | 3 ms | -40°C ~ 85°C |
|
|
HE722A0510RELAY REED DPST 500MA 5V Littelfuse Inc. |
2,470 | - |
RFQ |
Scheda tecnica |
Tube | HE700 | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|
|
HE721C0510RELAY REED SPDT 250MA 5V Littelfuse Inc. |
3,880 | - |
RFQ |
Scheda tecnica |
Tube | HE700 | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | 3 ms | 3 ms | -40°C ~ 85°C |
|
|
9001-05-01RELAY REED SPST 500MA 5V Coto Technology |
3,990 | - |
RFQ |
Scheda tecnica |
Tube | 9000 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C |
|
|
9001-12-01RELAY REED SPST 500MA 12V Coto Technology |
2,309 | - |
RFQ |
Scheda tecnica |
Tube | 9000 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C |
|

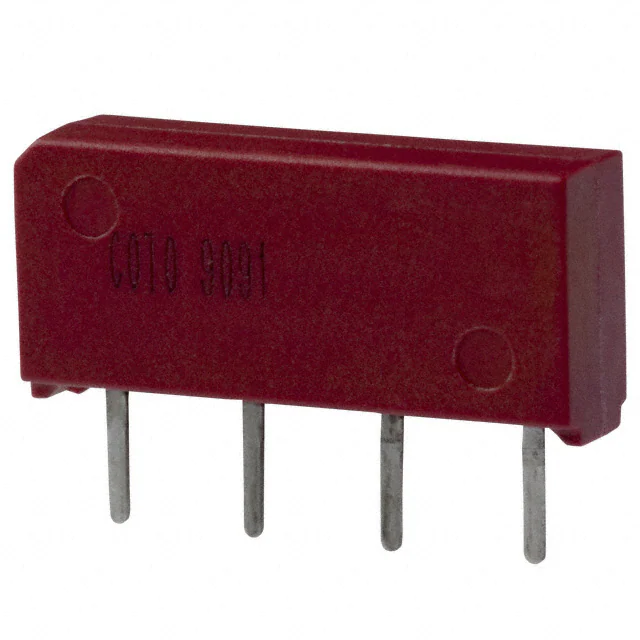

9091-05-00RELAY REED SPST 500MA 5V Coto Technology |
3,577 | - |
RFQ |
Scheda tecnica |
Tube | 9091 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C |
|

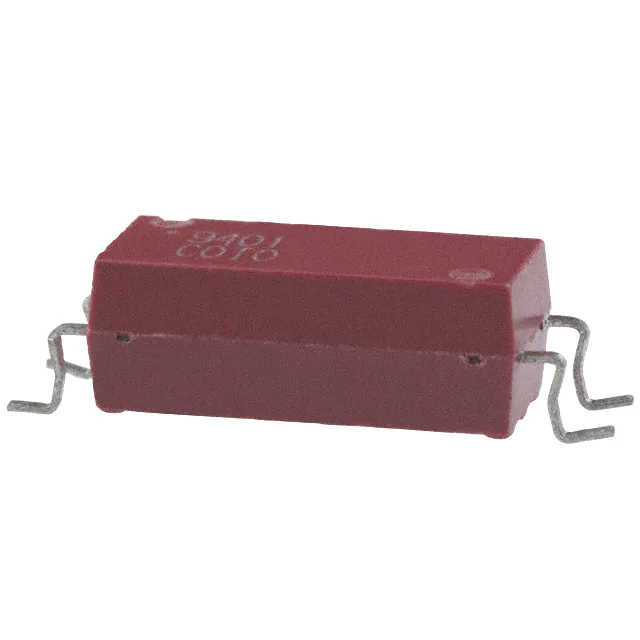

9401-12-00-TRRELAY REED SPST 500MA 12V Coto Technology |
2,957 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | 9400 | Active | Surface Mount | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 14.5 mA | Non Latching | - | Gull Wing | - | 9 VDC | 1 VDC | 0.4 ms | 0.2 ms | -20°C ~ 85°C |
|
|
HE721C2410RELAY REED SPDT 250MA 24V Littelfuse Inc. |
2,054 | - |
RFQ |
Scheda tecnica |
Tube | HE700 | Active | Through Hole | 24VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 16 VDC | 2 VDC | 3 ms | 3 ms | -40°C ~ 85°C |
|

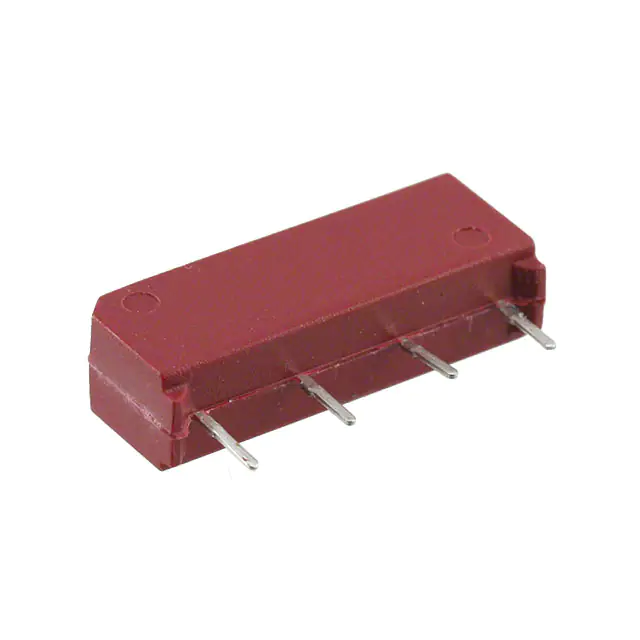

9001-05-02RELAY REED SPST 500MA 5V Coto Technology |
3,398 | - |
RFQ |
Scheda tecnica |
Tube | 9000 | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C |
|
|
8L01-05-111RELAY REED SPST 500MA 5V Coto Technology |
643 | - |
RFQ |
Scheda tecnica |
Tube | 8L | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|

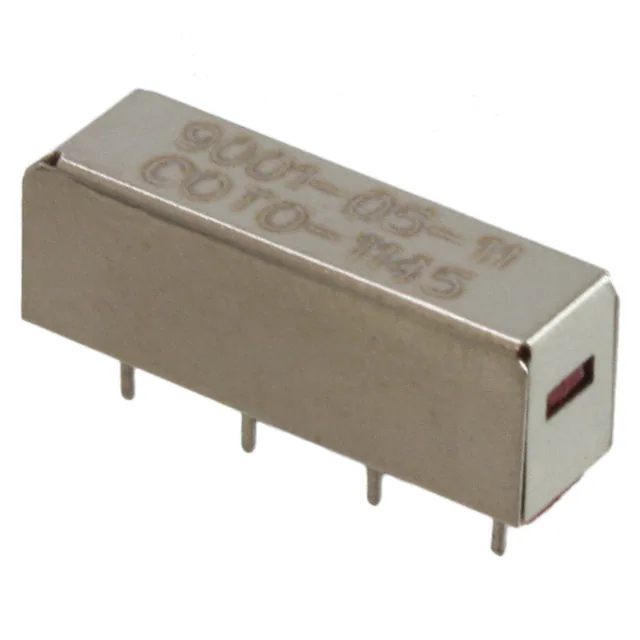

9001-05-11RELAY REED SPST 500MA 5V Coto Technology |
2,827 | - |
RFQ |
Scheda tecnica |
Tube | 9000 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C |
|
|
8L02-05-10RELAY REED DPST 500MA 5V Coto Technology |
3,943 | - |
RFQ |
Scheda tecnica |
Tube | 8L | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
HE3321C0500RELAY REED SPDT 250MA 5V Littelfuse Inc. |
3,235 | - |
RFQ |
Scheda tecnica |
Bulk | HE3300 | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 40 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 3 ms | 3 ms | -40°C ~ 85°C |
|

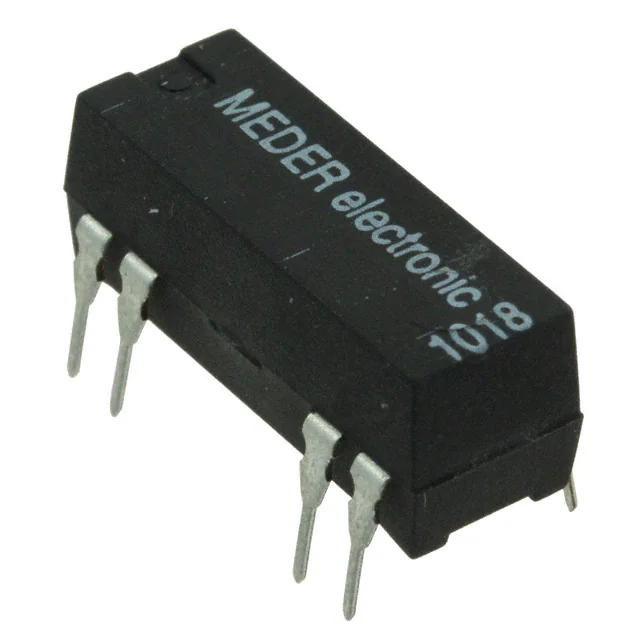

DIP05-2A72-21LRELAY REED DPST 1A 5V Standex-Meder Electronics |
2,344 | - |
RFQ |
Scheda tecnica |
Tube | DIP | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 1 A | 200VAC, 200VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
