Relè Reed
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3570-1331-123RELAY REED SIP SPST .5A 12V W/DI Comus International |
2,289 | - |
RFQ |
Scheda tecnica |
Tube | 3570 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 150VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.5 ms | -40°C ~ 85°C |
|

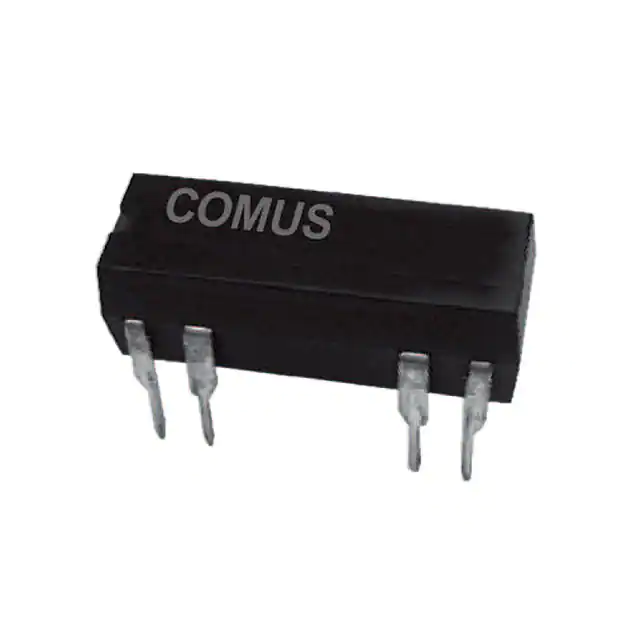

3570-1210-051RELAY REED DIP SPST .5A 5V Comus International |
3,574 | - |
RFQ |
Scheda tecnica |
Tube | 3570 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 150VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.6 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
HE721A2400RELAY REED SPST 500MA 24V Littelfuse Inc. |
3,003 | - |
RFQ |
Scheda tecnica |
Tube | HE700 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 11.1 mA | Non Latching | - | PC Pin | - | 16 VDC | 2 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|
|
3570-1210-121RELAY REED DIP SPST .5A 12V Comus International |
2,291 | - |
RFQ |
Scheda tecnica |
Tube | 3570 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 150VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
|
HE721A2410RELAY REED SPST 500MA 24V Littelfuse Inc. |
2,446 | - |
RFQ |
Scheda tecnica |
Tube | HE700 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 11.1 mA | Non Latching | Diode | PC Pin | - | 16 VDC | 2 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|
HE3621A1200RELAY REED SPST 500MA 12V Littelfuse Inc. |
3,360 | - |
RFQ |
Scheda tecnica |
Tube | HE3600 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 8 VDC | 1 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|
|
HE721A1210RELAY REED SPST 500MA 12V Littelfuse Inc. |
3,460 | - |
RFQ |
Scheda tecnica |
Tube | HE700 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 8 VDC | 1 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|
9007-12-01RELAY REED SPST 500MA 12V Coto Technology |
3,220 | - |
RFQ |
Scheda tecnica |
Tube | 9000, Spartan | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C |
|

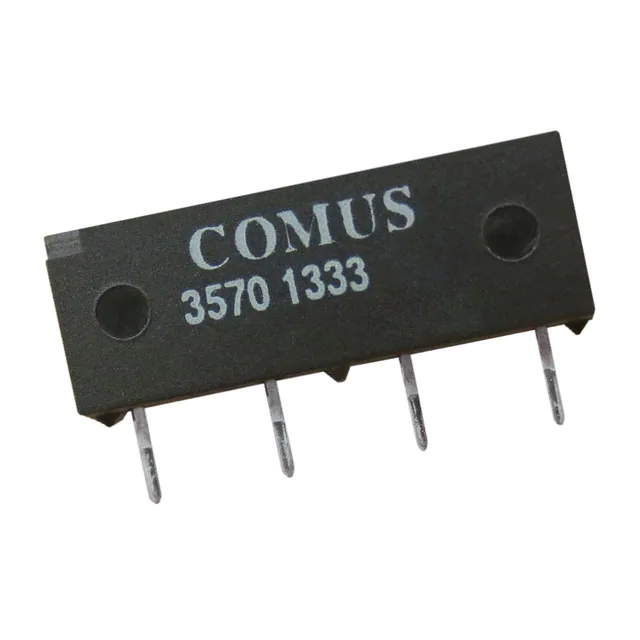

3570-1333-053RELAY REED SIP SPST .5A 5V W/DIO Comus International |
3,720 | - |
RFQ |
Scheda tecnica |
Tube | 3570 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.8 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C |
|

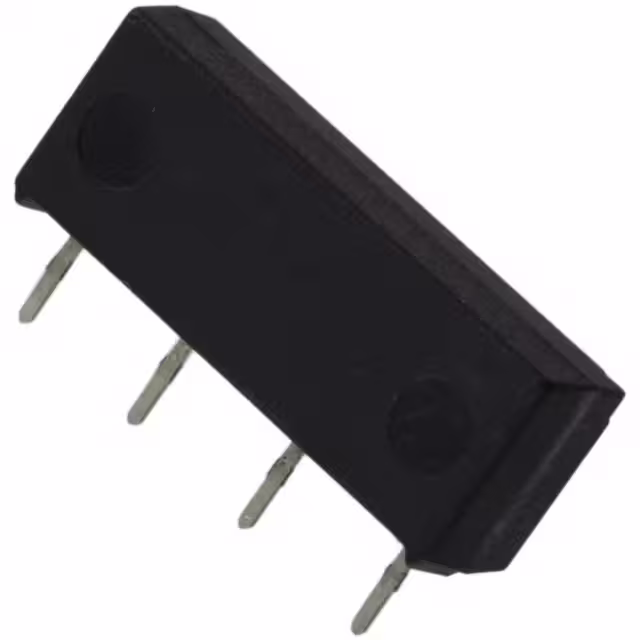

9007-24-01RELAY REED SPST 500MA 24V Coto Technology |
2,942 | - |
RFQ |
Scheda tecnica |
Tube | 9000, Spartan | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 18 VDC | 2 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C |
|
|
HE3621A2400RELAY REED SPST 500MA 24V Littelfuse Inc. |
3,548 | - |
RFQ |
Scheda tecnica |
Tube | HE3600 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 11.1 mA | Non Latching | - | PC Pin | - | 16 VDC | 2 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|
|
HE751A0510RELAY REED SPST 500MA 5V Littelfuse Inc. |
2,916 | - |
RFQ |
Scheda tecnica |
Tube | HE700 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 300VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C |
|
3572-1220-121RELAY REED DIP DPST .5A 12V Comus International |
881 | - |
RFQ |
Scheda tecnica |
Tube | 3572 | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 150VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
HE3321A1200RELAY REED SPST 500MA 12V Littelfuse Inc. |
3,936 | - |
RFQ |
Scheda tecnica |
Tube | HE3300 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|
3570-1419-051RELAY REED SIP SPST 1A 5V Comus International |
2,929 | - |
RFQ |
Scheda tecnica |
Tube | 3570 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C |
|
|
HE3621A2410RELAY REED SPST 500MA 24V Littelfuse Inc. |
899 | - |
RFQ |
Scheda tecnica |
Tube | HE3600 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 11.1 mA | Non Latching | Diode | PC Pin | - | 16 VDC | 2 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|
|
HE3351A1200RELAY REED SPST 1A 12V Littelfuse Inc. |
2,840 | - |
RFQ |
Scheda tecnica |
Tube | HE3300 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 300VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 1 ms | -20°C ~ 85°C |
|
|
3570-1419-053RELAY REED SIP SPST 1A 5V W/DIO Comus International |
580 | - |
RFQ |
Scheda tecnica |
Tube | 3570 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C |
|
|
HE722A2400RELAY REED DPST 500MA 24V Littelfuse Inc. |
3,411 | - |
RFQ |
Scheda tecnica |
Tube | HE700 | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 11.1 mA | Non Latching | - | PC Pin | - | 16 VDC | 2 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|
DIP05-1A72-11LRELAY REED SPST 1A 5V Standex-Meder Electronics |
932 | - |
RFQ |
Scheda tecnica |
Tube | DIP | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
