Convertitore di commutazione, trasformatori SMPS

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint

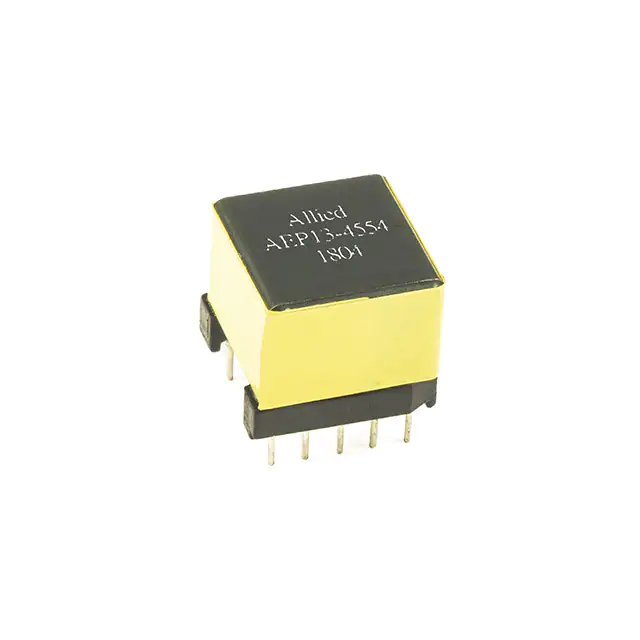

AEP13-4554 EP13 SMD TRANSFORMER Allied Components International	3,512	-	RFQ	Scheda tecnica	Tape & Reel (TR)	-	Active	-	-	-	-	23V ~ 65V	-	1250Vrms	400µH @ 10kHz	125kHz	-40°C ~ 125°C	Through Hole	0.550 L x 0.550 W (13.97mm x 13.97mm)	0.500 (12.70mm)	0.550 L x 0.550 W (13.97mm x 13.97mm)

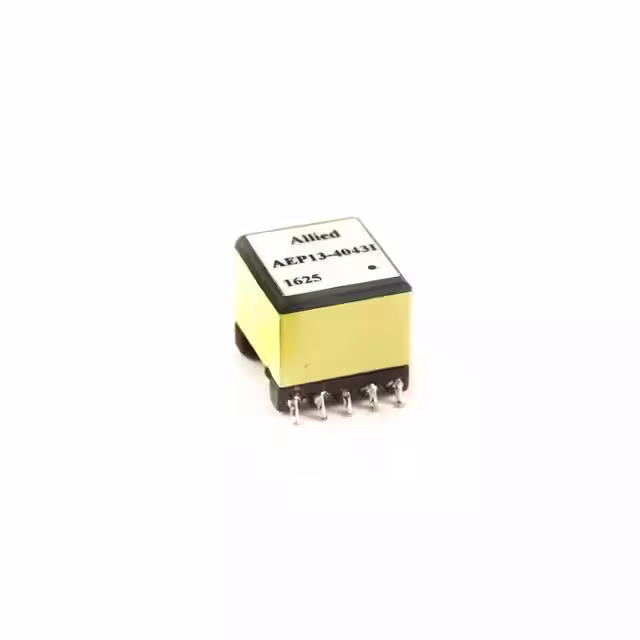

AEP13-4043I 3.0mH 6% EP13 SMD Transformer Allied Components International	3,705	-	RFQ	Scheda tecnica	Tape & Reel (TR)	-	Active	-	-	-	-	-	-	2000Vrms	-	-	-	Surface Mount	0.530 L x 0.516 W (13.46mm x 13.11mm)	0.485 (12.32mm)	-
AEP13-3967 127UH 10% EP13 Transformer Allied Components International	3,880	-	RFQ	Scheda tecnica	Tape & Reel (TR)	-	Active	-	Flyback Converters	-	-	-	-	1500Vrms	127µH	-	-40°C ~ 130°C	Surface Mount	0.606 L x 0.530 W (15.40mm x 13.46mm)	0.485 (12.32mm)	0.695 L x 0.530 W (17.65mm x 13.46mm)

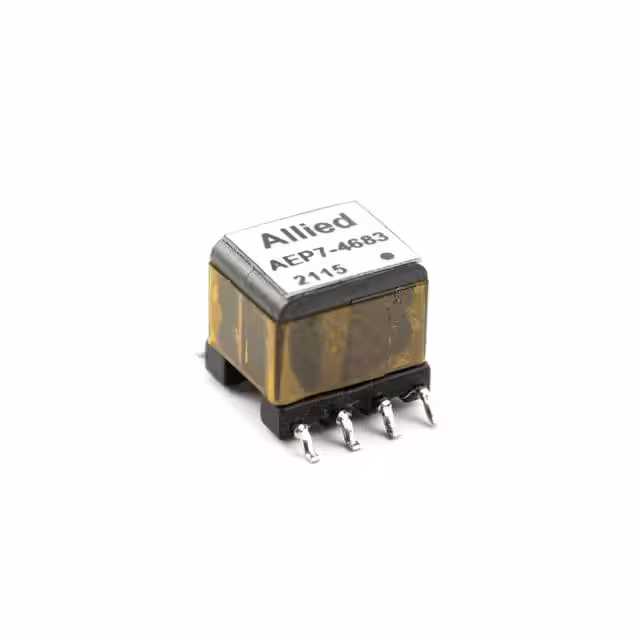

AEP7-4683 310UH 10% EP7 SMD Transformer Allied Components International	3,196	-	RFQ	Scheda tecnica	Tape & Reel (TR)	-	Active	-	-	-	-	72V	-	1500VAC	310µH	-	-	Surface Mount	0.394 L x 0.346 W (10.00mm x 8.80mm)	0.362 (9.20mm)	-

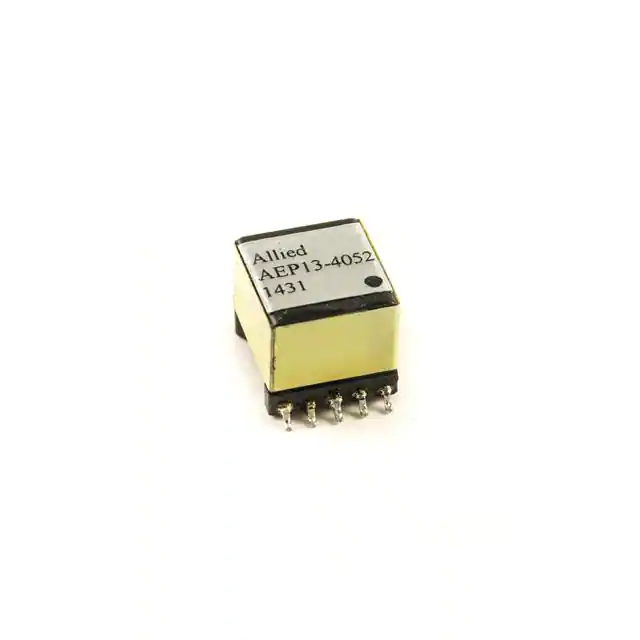

AEP13-4052 100UH 10% EP13 SMD Transformer Allied Components International	3,729	-	RFQ	Scheda tecnica	Tape & Reel (TR)	-	Active	-	Flyback Converters	-	-	36V	8V @ 20mA	1500Vrms	100µH	100kHz	-40°C ~ 125°C	Surface Mount	0.530 L x 0.512 W (13.46mm x 13.01mm)	0.500 (12.70mm)	0.606 L x 0.530 W (15.39mm x 13.46mm)

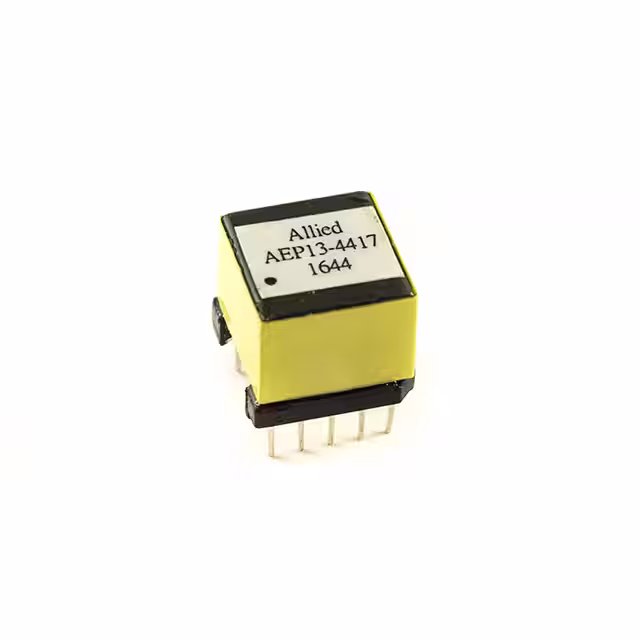

AEP13-4417 EP13 TRANSFORMER Allied Components International	2,267	-	RFQ	Scheda tecnica	Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-	-	-	-	Through Hole	0.571 L x 0.559 W (14.50mm x 14.20mm)	0.531 (13.50mm)	-

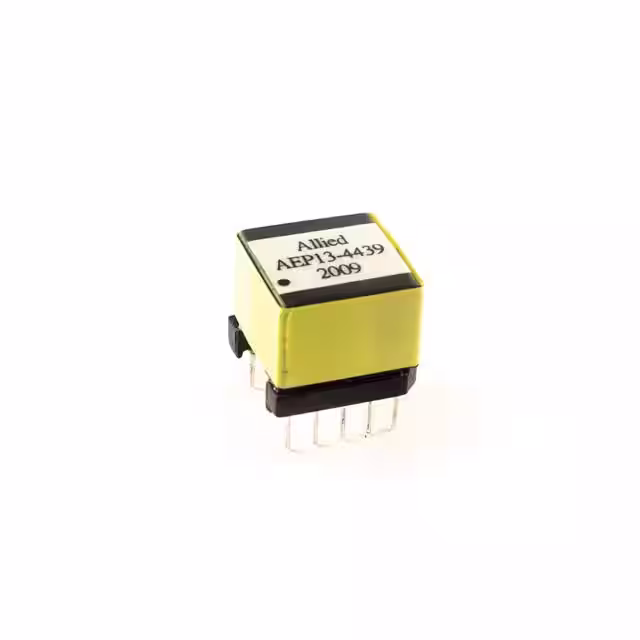

AEP13-4439 1.0mH 15% EP13 SMD Transformer Allied Components International	2,327	-	RFQ	Scheda tecnica	Tape & Reel (TR)	-	Active	-	-	-	-	-	-	4000Vrms	-	-	-	Through Hole	0.551 L x 0.551 W (14.00mm x 14.00mm)	0.531 (13.50mm)	-
AEP13-4399 EP13 SMD TRANSFORMER Allied Components International	3,046	-	RFQ	Scheda tecnica	Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-	-	-	-	Surface Mount	-	0.450 (11.43mm)	-

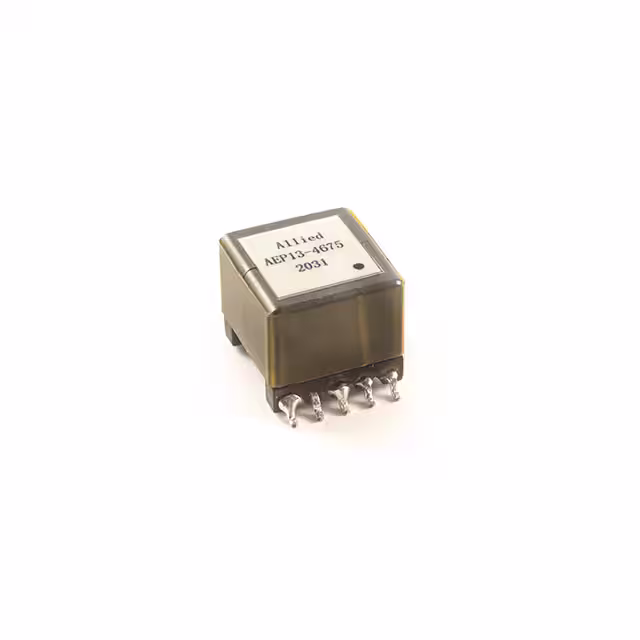

AEP13-4675 15.0UH, EP13 TRANSFORMER Allied Components International	2,361	-	RFQ	Scheda tecnica	Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-	15µH	-	-	Surface Mount	0.700 L x 0.531 W (17.80mm x 13.50mm)	0.500 (12.70mm)	-

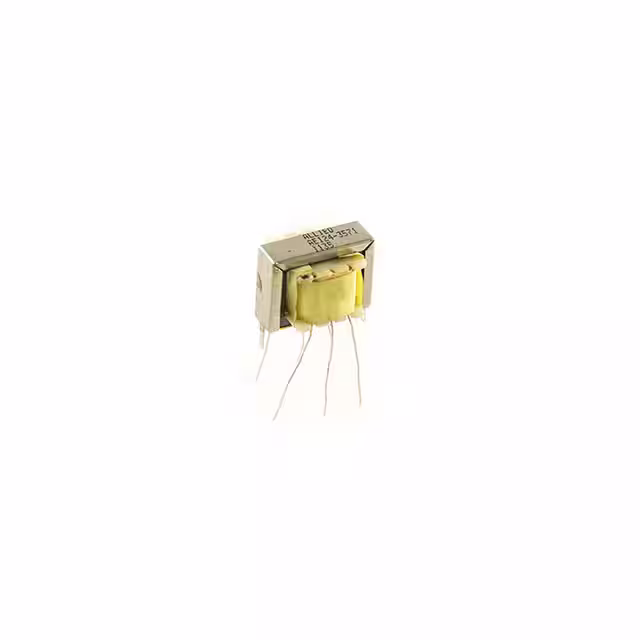

AEI24-3571 EI-24, Hybrid, 600ohm to 150ohm Allied Components International	3,637	-	RFQ	Scheda tecnica	Box	-	Active	-	-	-	-	-	-	1500V	-	-	-	Through Hole	1.000 L x 0.840 W (25.40mm x 21.34mm)	0.987 (25.07mm)	-

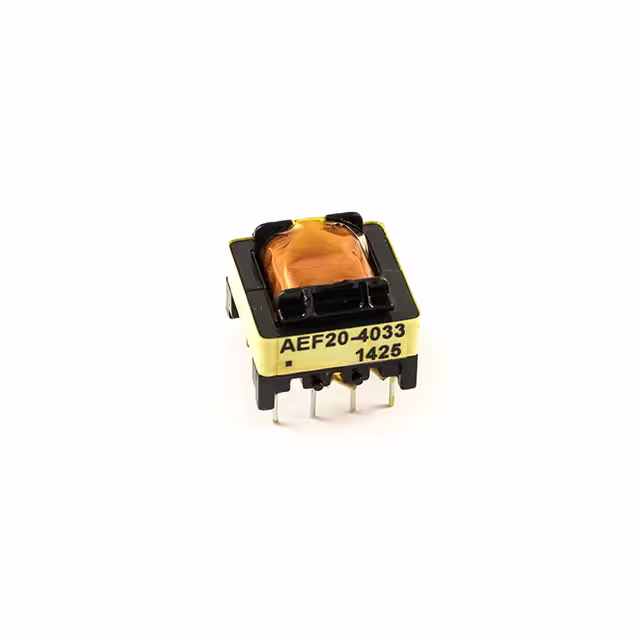

AEF20-4033 EF20 TRANSFORMER Allied Components International	3,214	-	RFQ	Scheda tecnica	Box	-	Active	-	-	-	-	-	-	4000VAC	-	-	-	Through Hole	0.846 L x 0.846 W (21.50mm x 21.50mm)	0.650 (16.50mm)	-
AEFD20-3782-A 42.5UH10% EFD20 H.F. TRANS. Allied Components International	3,778	-	RFQ	Scheda tecnica	Tray	-	Active	For AC/DC Converters	Flyback Converters	-	-	20 ~ 60V	12V @ 50mA	1500Vrms	42.5µH	250kHz	-40°C ~ 85°C	Surface Mount	0.866 L x 0.866 W (22.00mm x 22.00mm)	0.453 (11.50mm)	1.128 L x 0.866 W (28.65mm x 22.00mm)

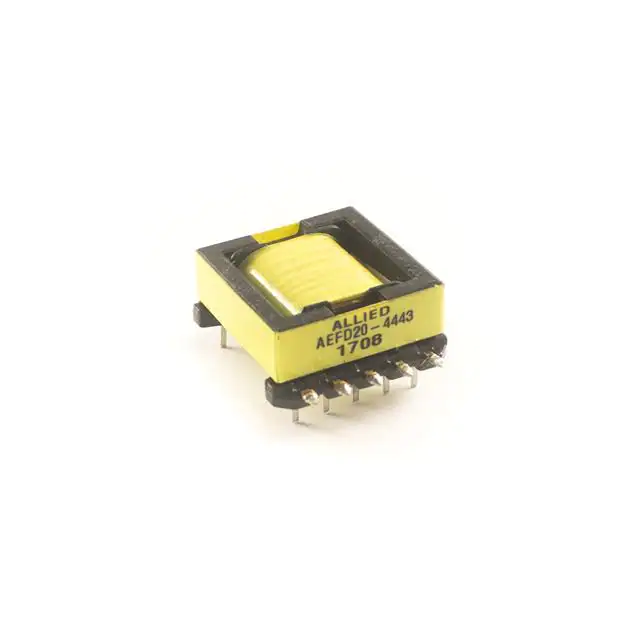

AEFD20-4443 650UH 10% EFD20 TRANSFORMER Allied Components International	3,948	-	RFQ	Scheda tecnica	Tray	-	Active	-	Flyback Converters	-	-	-	-	3600V	650µH	-	85°C	Through Hole	0.984 L x 0.906 W (25.00mm x 23.00mm)	0.394 (10.00mm)	0.984 L x 0.906 W (25.00mm x 23.00mm)

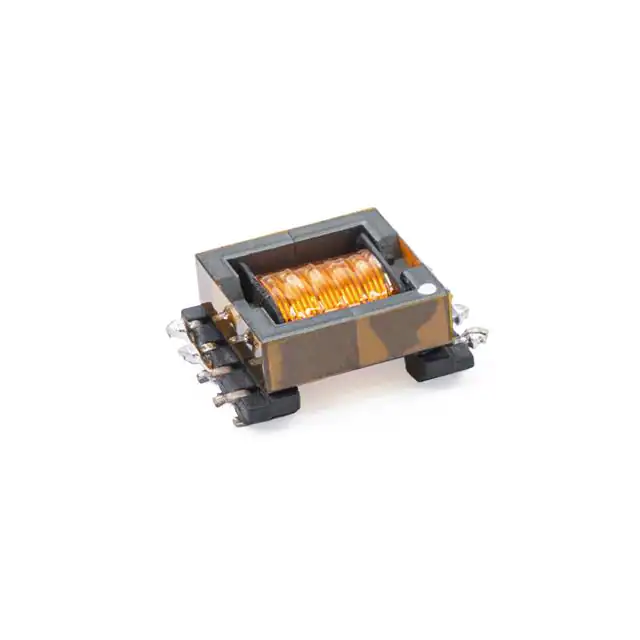

AEFD15-4603 10.0UH10% EFD15 PWR TRANSFORMER Allied Components International	3,420	-	RFQ	Scheda tecnica	Tray	-	Active	-	Flyback Converters	-	-	-	-	1500Vrms	10µH	-	125°C	Surface Mount	0.972 L x 0.689 W (24.70mm x 17.50mm)	0.354 (9.00mm)	0.972 L x 0.689 W (24.70mm x 17.50mm)

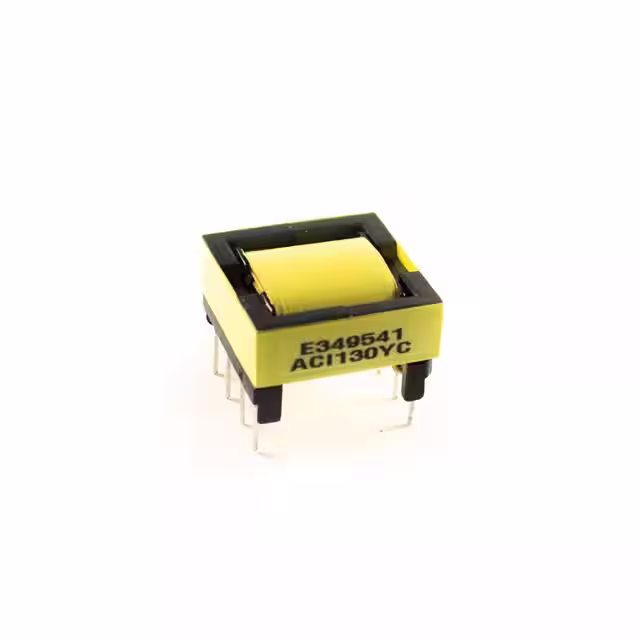

AEFD20-3645 1.8MH20% EFD20 TRANSFORMER Allied Components International	2,958	-	RFQ	Scheda tecnica	Tray	-	Active	-	-	-	-	-	-	3000V	-	-	-	Through Hole	0.886 L x 0.866 W (22.50mm x 22.00mm)	0.551 (14.00mm)	-

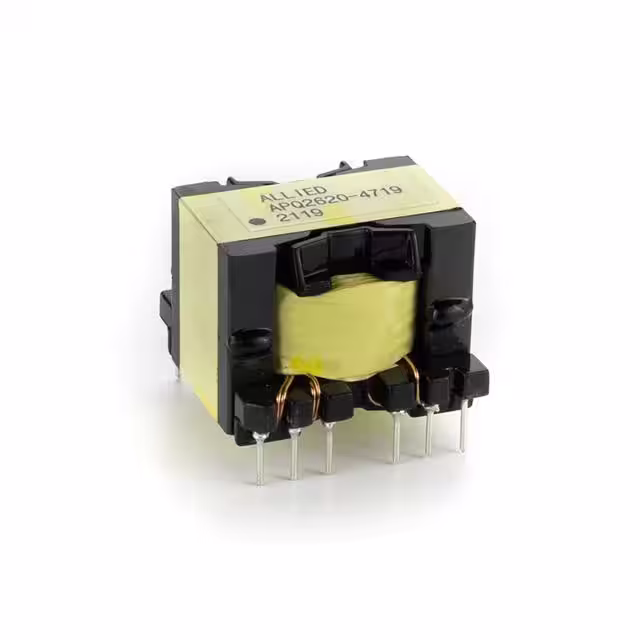

APQ2620-4719 586uH +/-7% 12-Pin Thru-Hole Allied Components International	2,506	-	RFQ	Scheda tecnica	Box	-	Active	-	-	-	-	-	-	3000Vrms	586µH	-	-	Through Hole	1.220 L x 1.102 W (31.00mm x 28.00mm)	1.043 (26.50mm)	-

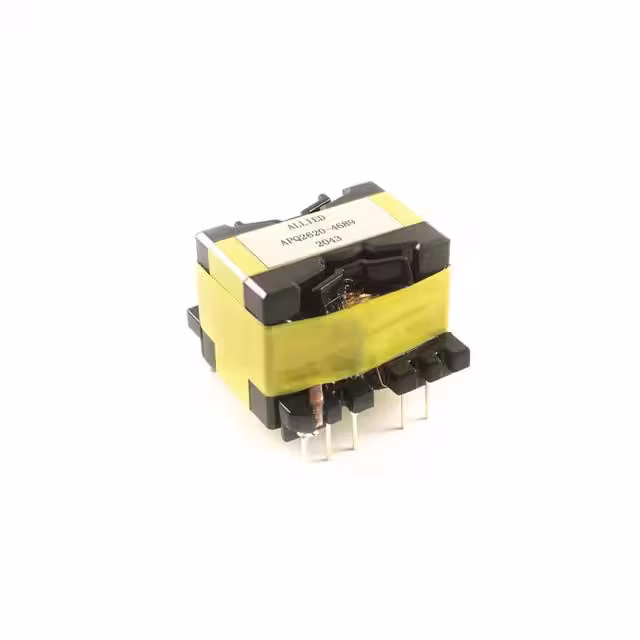

APQ2620-4689 425UH10% PQ2620 TRANSFORMER Allied Components International	3,976	-	RFQ	Scheda tecnica	Tray	-	Active	-	-	-	-	-	-	1250V	425µH	-	-	Through Hole	1.184 L x 1.150 W (30.07mm x 29.20mm)	0.866 (22.00mm)	-

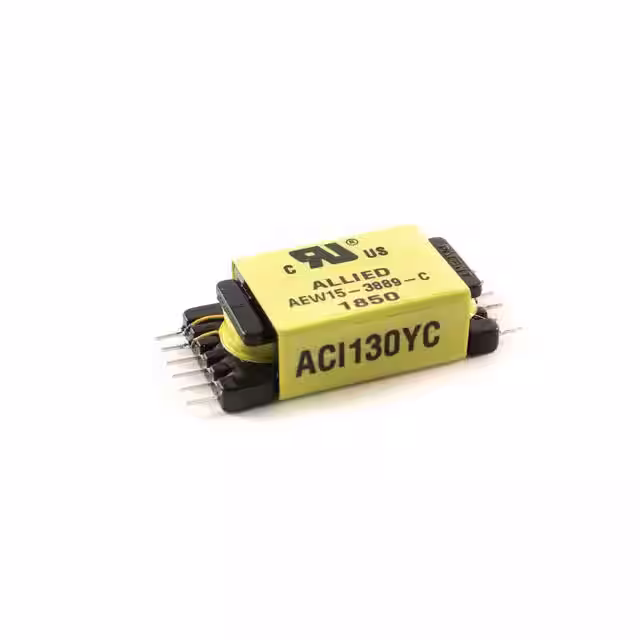

AEW15-3889-C 419UH 10%EW15 12-PIN SMD TRANS. Allied Components International	2,546	-	RFQ	Scheda tecnica	Box	-	Active	-	-	-	-	-	-	3000V	419µH	-	-	Surface Mount	1.378 L x 0.689 W (35.00mm x 17.50mm)	0.433 (11.00mm)	-

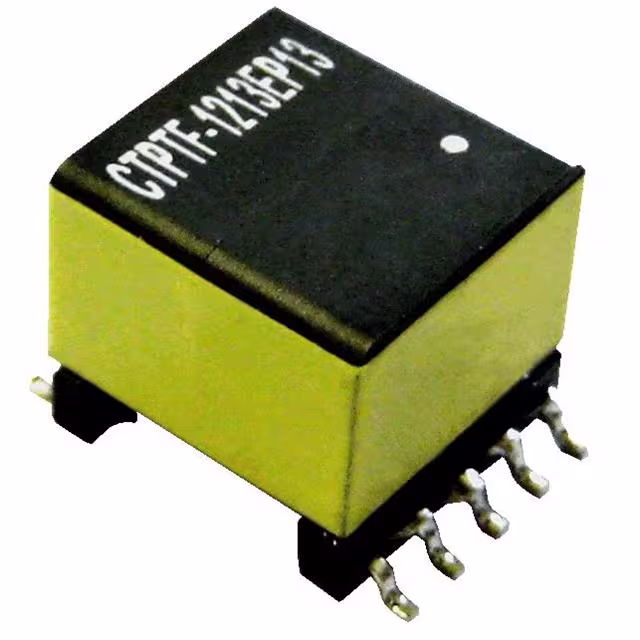

CTPTF-2611EP10 264UH SMD POE POWER TRANSFORMERS Central Technologies	2,331	-	RFQ	Scheda tecnica	Tube	CTPTF	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	33 ~ 57V	-	1500Vrms	264µH	200kHz	-40°C ~ 125°C	Surface Mount	-	0.453 (11.50mm)	0.583 L x 0.551 W (14.80mm x 14.00mm)
CTPTF-3111EP7 310UH SMD POE POWER TRANSFORMERS Central Technologies	2,341	-	RFQ	Scheda tecnica	Tube	CTPTF	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	33 ~ 57V	-	1500Vrms	310µH	200kHz	-40°C ~ 125°C	Surface Mount	-	0.365 (9.27mm)	0.531 L x 0.420 W (13.50mm x 10.67mm)
