Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	MountingType	CoilVoltage	ContactForm	ContactRating(Current)	SwitchingVoltage	CoilCurrent	CoilType	Features	TerminationStyle	SealRating	MustOperateVoltage	MustReleaseVoltage	OperateTime	ReleaseTime	OperatingTemperature
SIL05-1A72-71D RELAY REED SPST 0.5A 5V Standex-Meder Electronics	600	-	RFQ	Scheda tecnica	Tube	SIL	Active	Through Hole	5VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	10 mA	Non Latching	-	PC Pin	-	3.5 VDC	0.75 VDC	0.7 ms	0.1 ms	-20°C ~ 70°C
SIL03-1A72-71D RELAY REED SPST 0.5A 3V Standex-Meder Electronics	2,760	-	RFQ	Scheda tecnica	Tube	SIL	Active	Through Hole	3VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	6 mA	Non Latching	Diode	PC Pin	-	2.1 VDC	0.45 VDC	0.7 ms	0.05 ms	-20°C ~ 70°C
DIP05-2A72-21L RELAY REED DPST 1A 5V Standex-Meder Electronics	2,344	-	RFQ	Scheda tecnica	Tube	DIP	Active	Through Hole	5VDC	DPST-NO (2 Form A)	1 A	200VAC, 200VDC - Max	25 mA	Non Latching	-	PC Pin	-	3.5 VDC	0.75 VDC	0.5 ms	0.1 ms	-20°C ~ 70°C
SHV05-1A85-78D2K RELAY REED SPST 1A 5V Standex-Meder Electronics	392	-	RFQ	Scheda tecnica	Tube	SHV	Active	Through Hole	5VDC	SPST-NO (1 Form A)	1 A	1000VAC, 1000VDC - Max	22 mA	Non Latching	Diode	PC Pin	-	3.75 VDC	0.5 VDC	1.1 ms	0.1 ms	-40°C ~ 105°C
SHV05-1A85-78D4K RELAY REED SPST 1A 5V Standex-Meder Electronics	897	-	RFQ	Scheda tecnica	Tube	SHV	Active	Through Hole	5VDC	SPST-NO (1 Form A)	1 A	1000VAC, 1000VDC - Max	35.7 mA	Non Latching	Diode	PC Pin	-	3.75 VDC	0.5 VDC	1.1 ms	0.1 ms	-40°C ~ 100°C
LI24-1A85 RELAY REED SPST 1A 24V Standex-Meder Electronics	527	-	RFQ	Scheda tecnica	Tube	LI	Active	Through Hole	24VDC	SPST-NO (1 Form A)	1 A	1000VAC, 1000VDC - Max	12 mA	Non Latching	-	PC Pin	-	16.8 VDC	3.6 VDC	1 ms	0.1 ms	-20°C ~ 70°C
DIP05-1A72-11L RELAY REED SPST 1A 5V Standex-Meder Electronics	932	-	RFQ	Scheda tecnica	Tube	DIP	Active	Through Hole	5VDC	SPST-NO (1 Form A)	1 A	200VAC, 200VDC - Max	10 mA	Non Latching	-	PC Pin	-	3.5 VDC	0.75 VDC	0.5 ms	0.1 ms	-20°C ~ 70°C
DIP05-1A72-11D RELAY REED SPST 1A 5V Standex-Meder Electronics	221	-	RFQ	Scheda tecnica	Tube	DIP	Active	Through Hole	5VDC	SPST-NO (1 Form A)	1 A	200VAC, 200VDC - Max	10 mA	Non Latching	Diode	PC Pin	-	3.5 VDC	0.75 VDC	0.5 ms	0.1 ms	-20°C ~ 70°C
SIL12-1A72-71L RELAY REED SPST 0.5A 12V Standex-Meder Electronics	2,534	-	RFQ	Scheda tecnica	Tube	SIL	Active	Through Hole	12VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	12 mA	Non Latching	-	PC Pin	-	8.4 VDC	1.8 VDC	0.7 ms	0.1 ms	-20°C ~ 70°C
DIP05-2A72-21D RELAY REED DPST 1A 5V Standex-Meder Electronics	257	-	RFQ	Scheda tecnica	Tube	DIP	Active	Through Hole	5VDC	DPST-NO (2 Form A)	1 A	200VAC, 200VDC - Max	25 mA	Non Latching	Diode	PC Pin	-	3.5 VDC	0.75 VDC	0.5 ms	0.1 ms	-20°C ~ 70°C
DIP05-1C90-51L RELAY REED SPDT 250MA 5V Standex-Meder Electronics	103	-	RFQ	Scheda tecnica	Tube	DIP	Active	Through Hole	5VDC	SPDT (1 Form C)	250 mA	175VAC, 175VDC - Max	25 mA	Non Latching	-	PC Pin	-	3.5 VDC	0.75 VDC	0.7 ms	1.5 ms	-20°C ~ 70°C

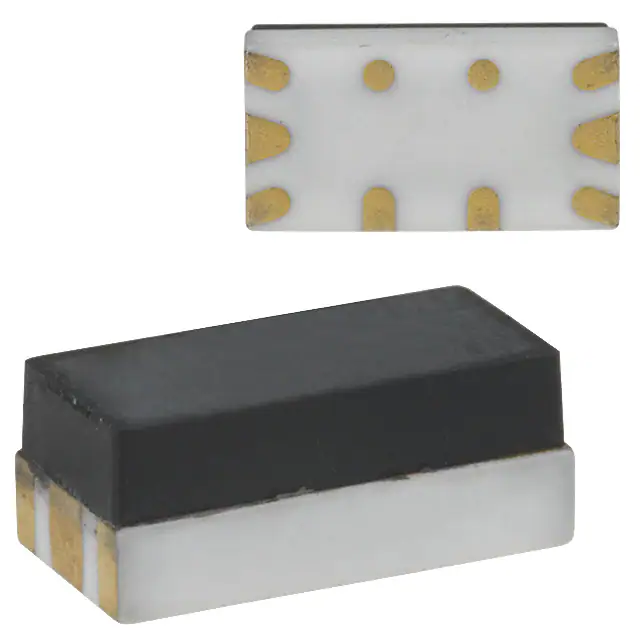

CRR05-1B RELAY REED SPST-NC 500MA 5V Standex-Meder Electronics	2,329	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	CRR	Active	Surface Mount	5VDC	SPST-NC (1 Form B)	500 mA	170VAC, 170VDC - Max	33.3 mA	Non Latching	-	SMD (SMT) Tab	-	3.75 VDC	0.75 VDC	0.6 ms	0.05 ms	-40°C ~ 125°C

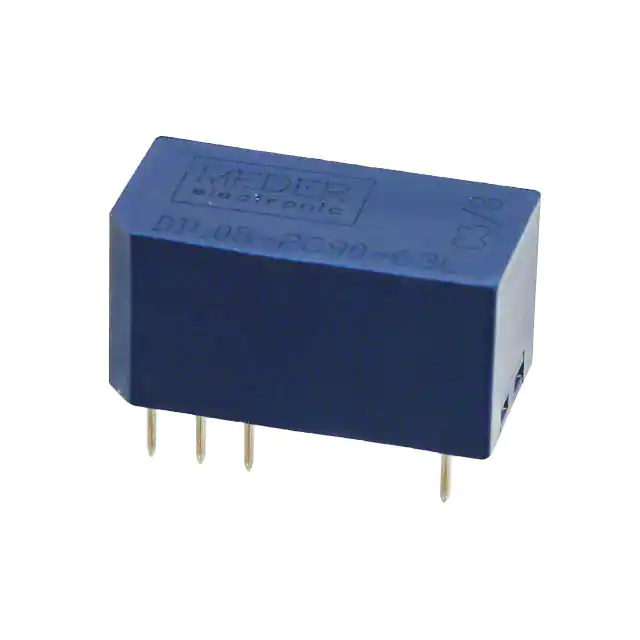

DIL05-2C90-63L RELAY REED DPDT 250MA 5V Standex-Meder Electronics	2,164	-	RFQ	Scheda tecnica	Tube	DIL	Active	Through Hole	5VDC	DPDT (2 Form C)	250 mA	175VAC, 175VDC - Max	33.4 mA	Non Latching	-	PC Pin	Sealed - Fully	3.5 VDC	0.75 VDC	0.7 ms	1.5 ms	-20°C ~ 70°C

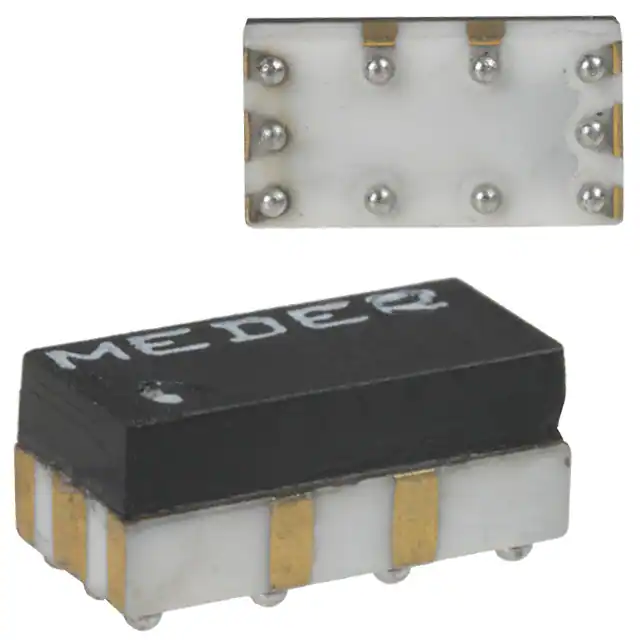

CRR05-1AS RELAY REED SPST 500MA 5V Standex-Meder Electronics	3,126	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	CRR	Active	Surface Mount	5VDC	SPST-NO (1 Form A)	500 mA	170VAC, 170VDC - Max	33.3 mA	Non Latching	-	BGA	-	3.75 VDC	0.75 VDC	0.6 ms	0.05 ms	-40°C ~ 125°C

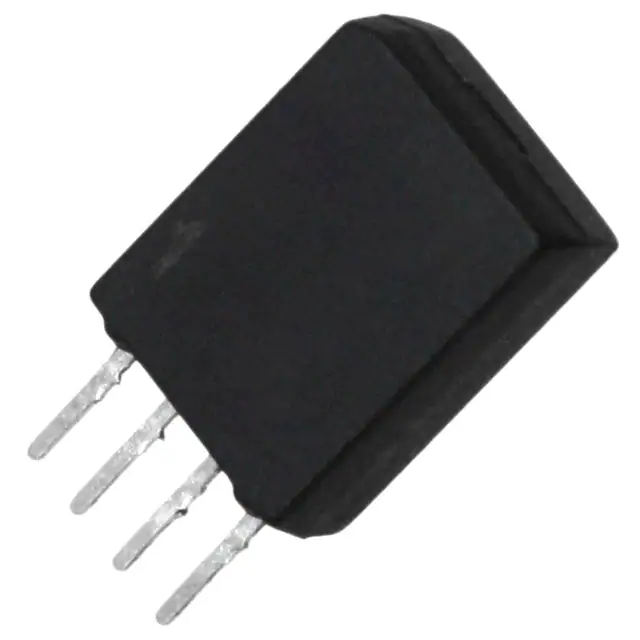

UMS05-1A80-75D RELAY REED SPST 500MA 5V Standex-Meder Electronics	3,433	-	RFQ	Scheda tecnica	Tube	UMS	Active	Through Hole	5VDC	SPST-NO (1 Form A)	500 mA	170VAC, 170VDC - Max	12.5 mA	Non Latching	Diode	PC Pin	-	3.75 VDC	0.5 VDC	0.2 ms	0.1 ms	-20°C ~ 85°C

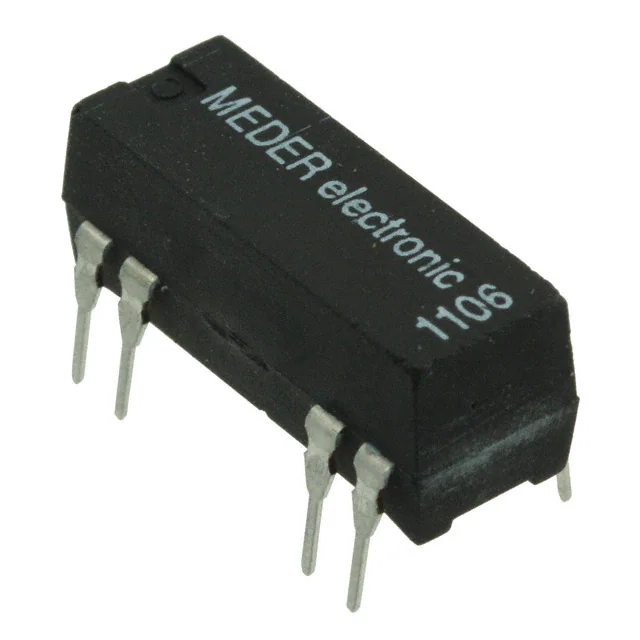

DIP24-2A72-21D RELAY REED DPST 1A 24V Standex-Meder Electronics	3,922	-	RFQ	Scheda tecnica	Tube	DIP	Active	Through Hole	24VDC	DPST-NO (2 Form A)	1 A	200VAC, 200VDC - Max	12 mA	Non Latching	Diode	PC Pin	-	16.8 VDC	3.6 VDC	0.5 ms	0.1 ms	-20°C ~ 70°C

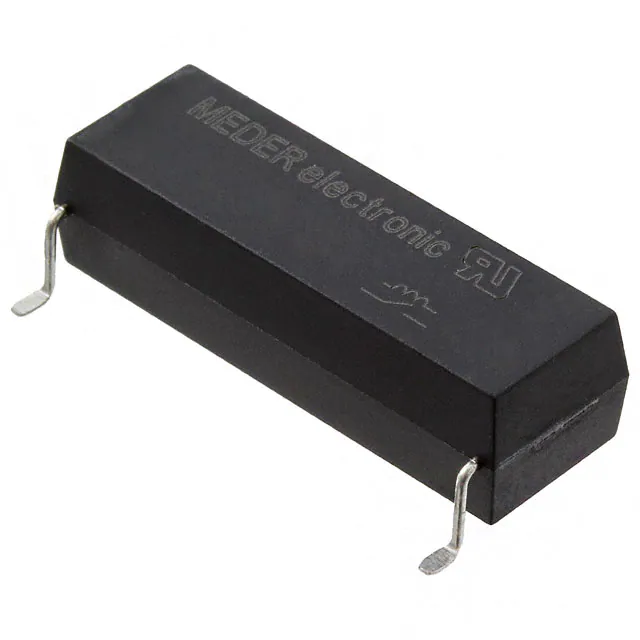

KT12-1A-40L-SMD REED RELAY 1 FORM A 12V SMD Standex-Meder Electronics	2,251	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	KT	Active	Surface Mount	12VDC	SPST-NO (1 Form A)	1 A	1000VAC, 1000VDC - Max	25 mA	Non Latching	-	Gull Wing	Sealed - Fully	9 VDC	1 VDC	-	-	-40°C ~ 100°C

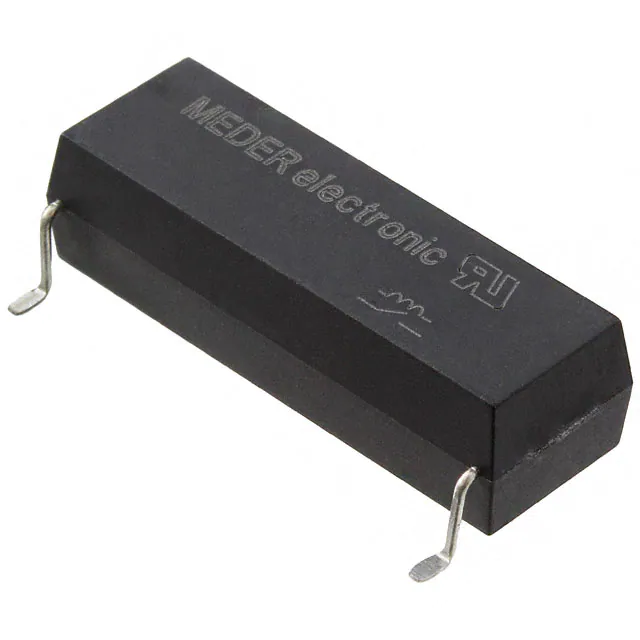

KT24-1A-40L-SMD REED RELAY 1 FORM A 24V SMD Standex-Meder Electronics	3,598	-	RFQ	Scheda tecnica	Tape & Reel (TR),Cut Tape (CT)	KT	Active	Surface Mount	24VDC	SPST-NO (1 Form A)	1 A	1000VAC, 1000VDC - Max	13.3 mA	Non Latching	-	Gull Wing	Sealed - Fully	16 VDC	2.9 VDC	-	-	-40°C ~ 100°C
DIP05-1A72-13L RELAY REED SPST 1A 5V Standex-Meder Electronics	2,826	-	RFQ	Scheda tecnica	Tube	DIP	Active	Through Hole	5VDC	SPST-NO (1 Form A)	1 A	200VAC, 200VDC - Max	10 mA	Non Latching	-	PC Pin	-	3.5 VDC	0.75 VDC	0.5 ms	0.1 ms	-20°C ~ 70°C

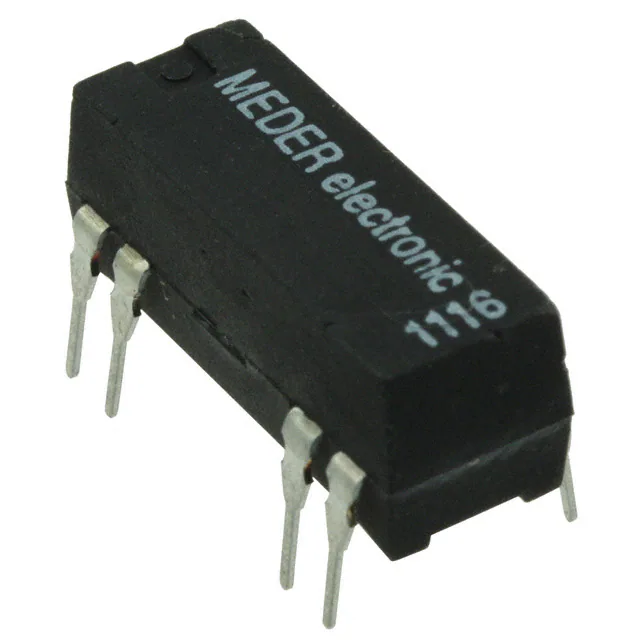

DIP12-1A72-12L RELAY REED SPST 1A 12V Standex-Meder Electronics	3,793	-	RFQ	Scheda tecnica	Tube	DIP	Active	Through Hole	12VDC	SPST-NO (1 Form A)	1 A	200VAC, 200VDC - Max	12 mA	Non Latching	-	PC Pin	-	8.4 VDC	1.8 VDC	0.5 ms	0.1 ms	-20°C ~ 70°C

Total 117 Record«Prev12 3 4...6 Next»
